Standard Neo-Angle Base

Sizes Available

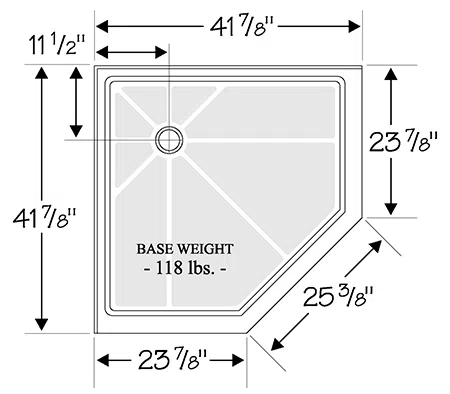

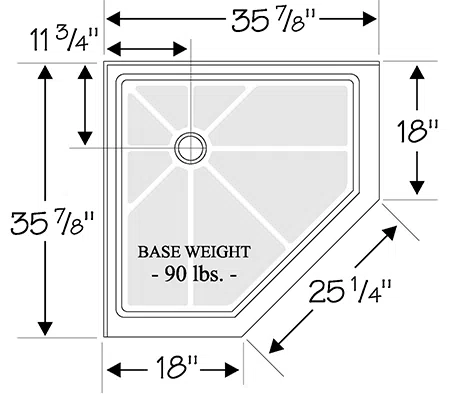

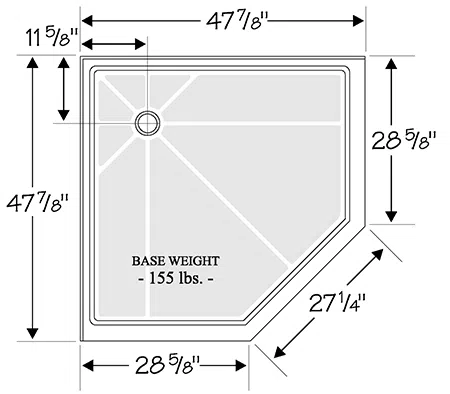

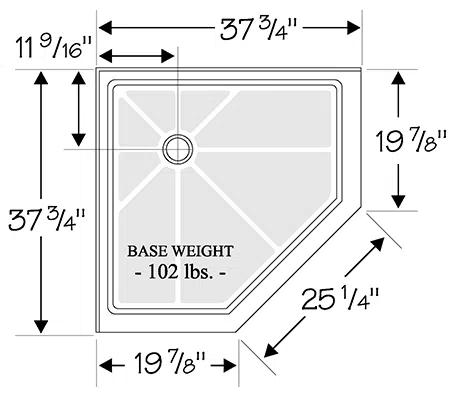

Click sizes for actual base measurements & drain location

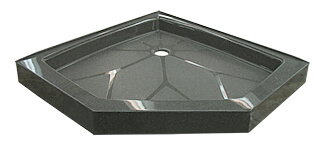

Standard Neo Angle Shower Bases are available individually and also as a kit with our Onyx wall panels. Other shower wall systems such as ceramic tile can also be used with Onyx shower bases.

All curbs have a slope back into the shower area and the shower area has a 1/4” per foot slope towards the drain.

Onyx Shower Kits can be ordered in 78”, 84”, 90”, 96”, 102”, and 108” tall heights (and any other height as needed – kit height includes base and walls). These kits include the shower base, all wall panels, adhesive silicone, and also color match seam-fill silicone.

All Standard Neo Angle Shower Bases we have available are listed on this page. Other standard bases include:

Low Profile, Full Height, Double Threshold, or Ramp Style showers, available on their respective pages. For custom sizes or configurations, visit the Popular Shower Configuration page, where you will discover infinite possibilities.

The Onyx Collection gives you a choice of over 50 colors and 75 standard base sizes so you don’t have to settle for something you really don’t want. For a distinctive look, several different Trim options are available, as well as contrasting Stripes and Borders and even Graphic Inlays to enhance the beauty and uniqueness of your shower.

The Onyx Collection also provides a wide range of accessories including Soap Dishes, Shampoo Caddies, Towel Bars, Shower Seats and even Foot Shelves, displayed on the Accessories page.

When planning your shower, it is important to order all the different components, trim and accessories at the same time, to assure proper fit and color match.

Product Certification: ANSI standard, Slip Coefficient, and ASTM E-84 Flame.

For the State of Massachusetts – Plumbing Approval Codes:

To view details of the Massachusetts Approval Codes P-2023-348, P3-0117-357 and P1-0814-9, start by clicking on this link to open the relevant webpage.

Once there, locate the “Manufacturer’s Name First Letter” section and select ‘T’ from the drop-down menu. Next, move to the “Manufacturers” section, choose “The Onyx Collection,” and then click on the “Search” button. This action will display a list of Onyx products related to the approval codes in the Search Results section of the page.
