Shower Wall Panels

Gloss, Stone Tile, Subway Tile, Wavy Tile, & Shiplap

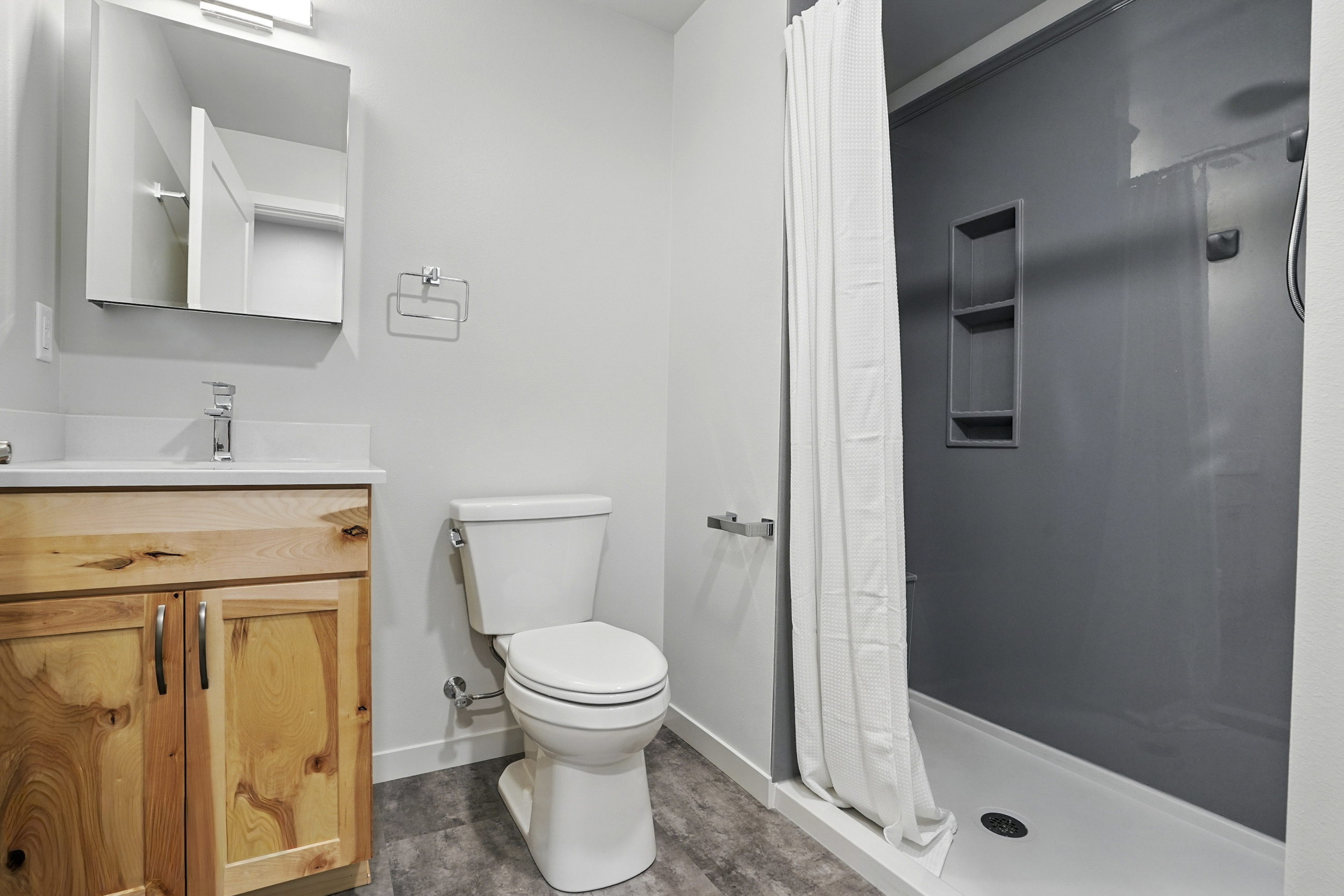

Gloss Finish

Our most popular finish, the smooth Gloss Finish gives a classic appearance with an easy to clean smooth surface. All colors are available in the Gloss Finish. Also, Inlay Stripes and Picture Inlays are available in the Gloss Finish.

Max panel size 88″ x 118 3/4″.

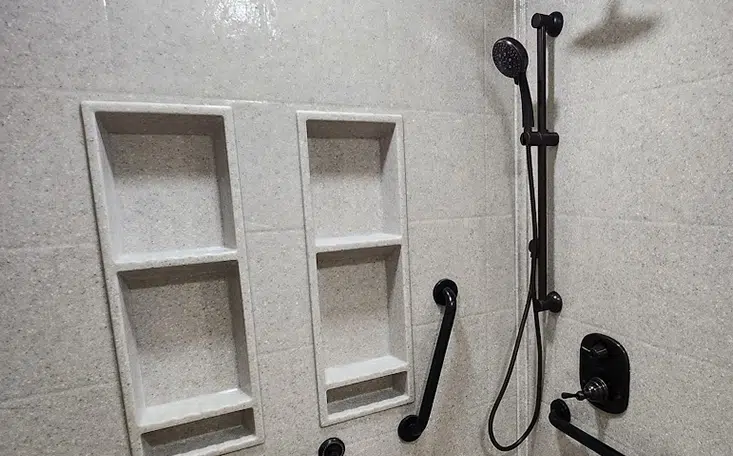

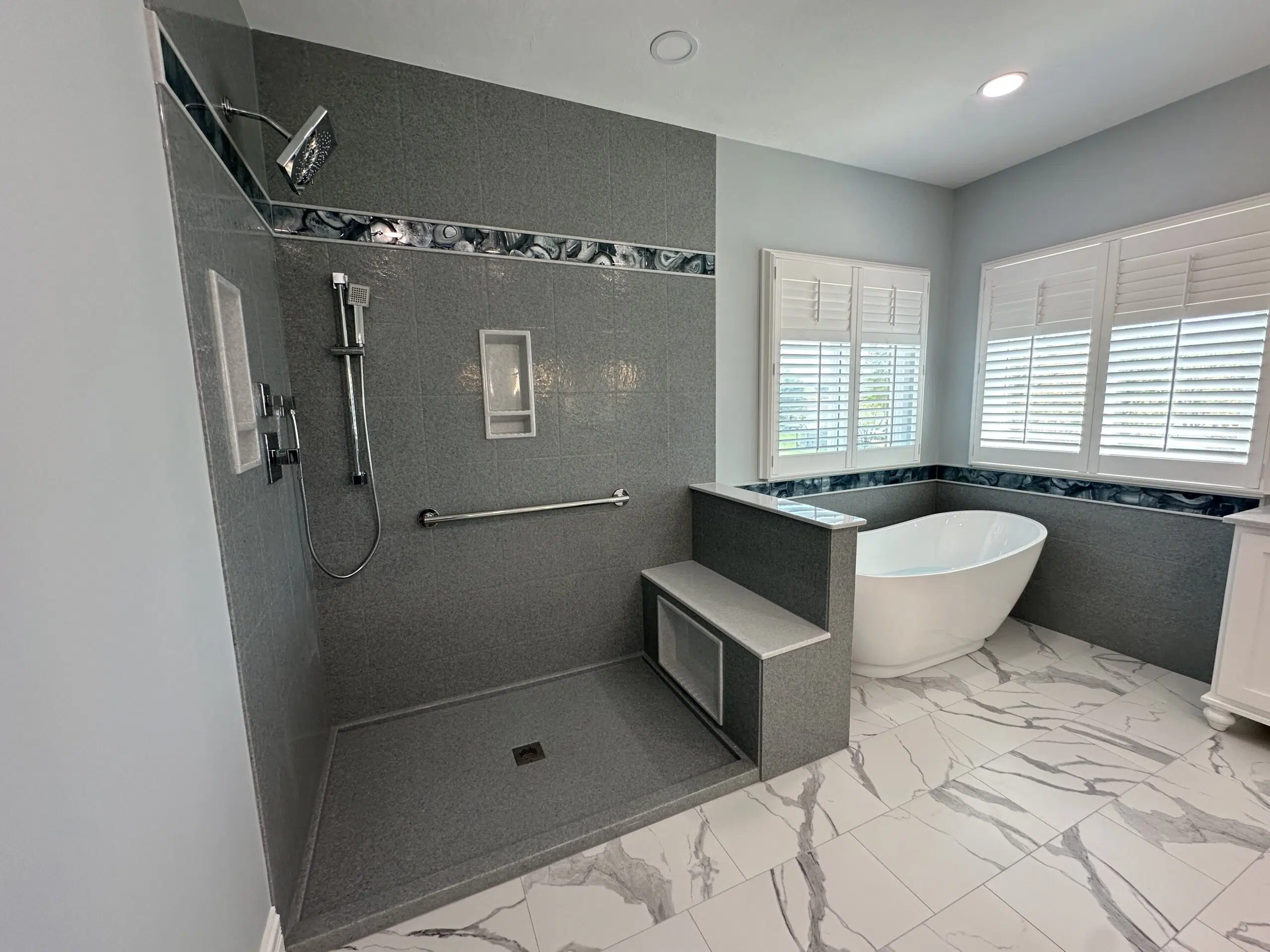

Stone Tile

Our production mold was made from natural 11 3/8″ x 11 3/8″ stone tiles which gives each wall panel, the look of stone tile without the worry of leaking grout seams. All our colors are available in Stone Tile Finish. No Picture Inlays or integral Stripe/Border available.

Max panel size 93 1/4″ x 105″.

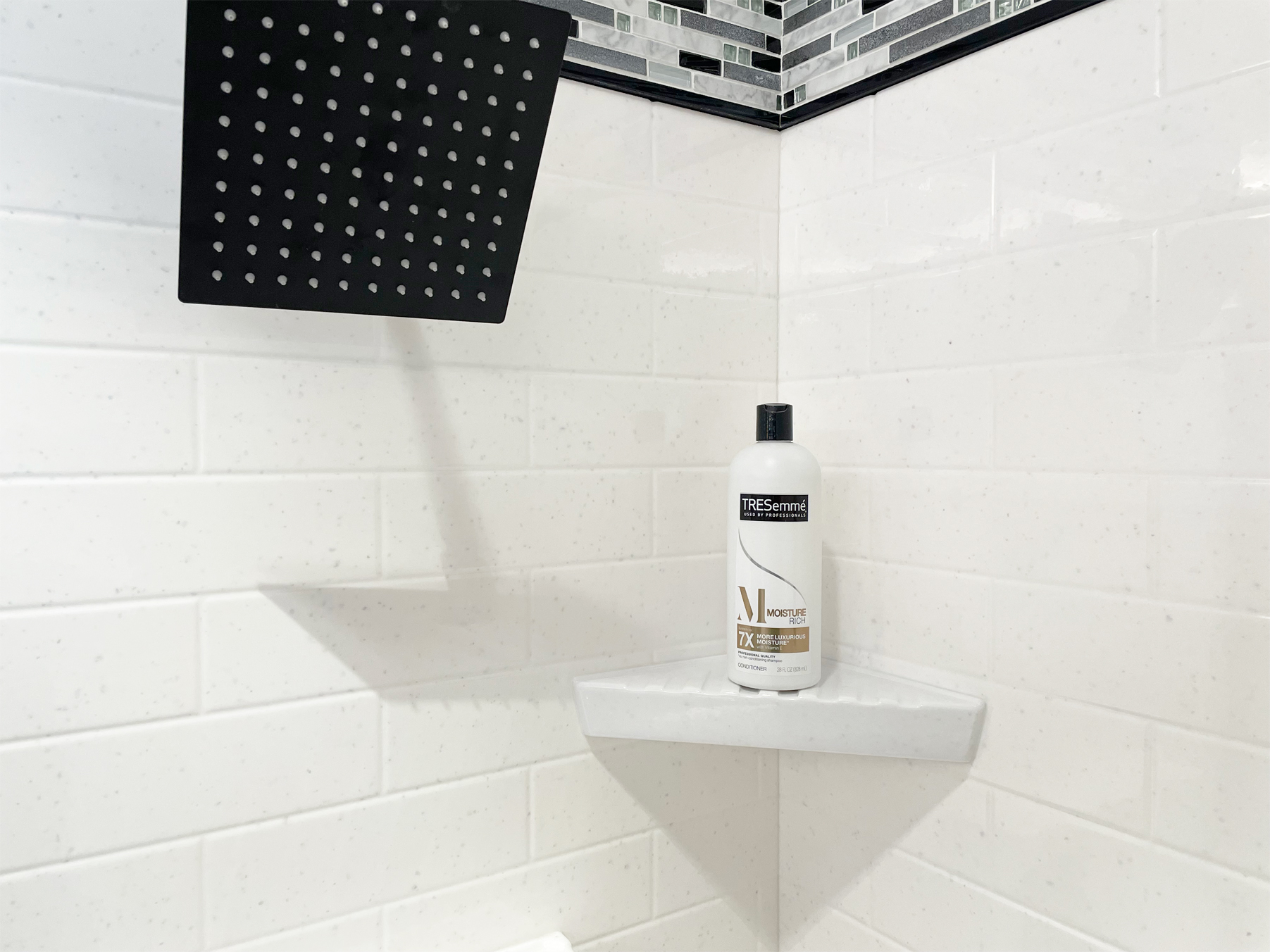

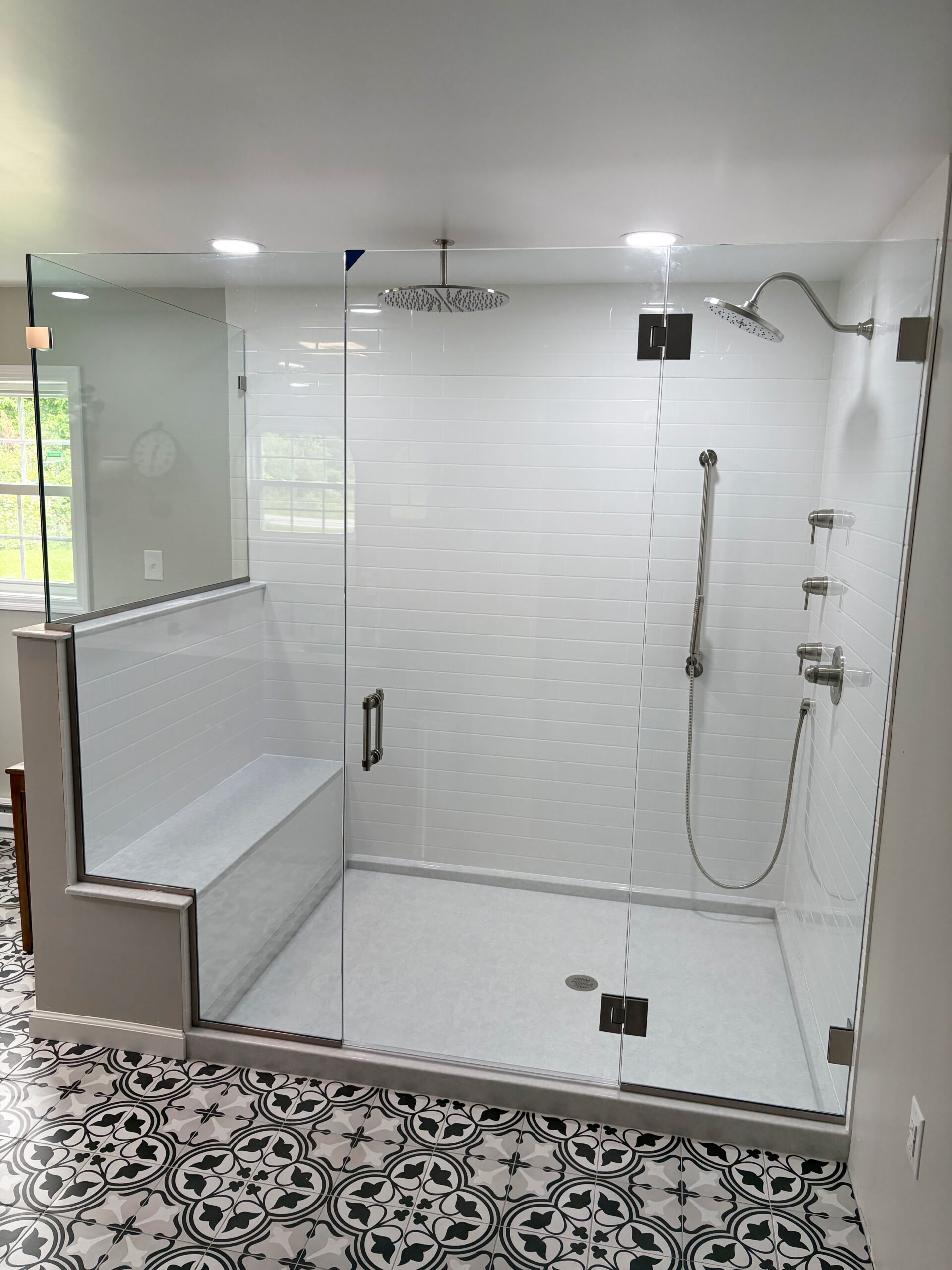

Subway Tile

Subway Tile Wall Panel Finish is a smooth, flat tile design with faux grout lines. — The size of the “tile” is 3″ x 9 5/8″ and the 1/4″ wide grout groove is 1/32″ deep. Subway Tile panels are priced the same as Smooth Gloss, Wavy Tile, and Stone Tile panel finishes. — As with all Onyx wall panels, the exposed edges will be finished. The grout molding shape will also be shown on the finished edge.

Max. panel size 87 5/8″ x 105 3/4″.

8" x 24" Wavy Tile

Actual tile size (not including any grout lines) is 7 7⁄8″ x 24 1⁄8″ ). The grout lines are 3/16″ wide. Max panel is 4 tiles wide by 13 tiles tall. Wavy Tile pattern can run horizontal or vertical.

Max. panel size 96 3/4″ x 105 1/8″.


Smooth panel with ¼” wide recessed groove. The spacing between the grooves is 5″.

The max. panel size is 96 1/8″ x 110″.

Shower Wall Panels Shiplap

Onyx wall panels are available in any height, color, and design. Panels are available in Gloss, Stone Tile, Subway Tile, Wavy Tile, and Shiplap Tile finish. An Onyx panel is approximately 5/16″ thick and is a solid color throughout. Panels weigh about 3.5lbs per square foot. Shower Wall Panel Instructions (PDF)

Most showers will use a panel for each wall. Each wall panel is a separate piece. The side panels have two finished edges, (top & front,) and the back panel will have a finished top edge. Any cutting, notching, drilling, or sanding can be done using regular wood cutting tools.

Panels are attached to the wall using our adhesive silicone. Color match silicone is used to seal the seams where two onyx pieces come together. Panels can be ordered oversized and can be trimmed to fit using regular wood cutting tools. Corner trim is also available to cover gaps caused by crooked or uneven walls.

Onyx wall panels can also be used for bathtub walls. Shower Accessories – caddies, seats, and trim are available to match the Onyx shower wall panels and base.

Onyx panels are easy to clean. A common household surface cleaner that we often recommend is just diluted white vinegar. This works well on all Onyx products. Gel-Gloss will help maintain the appearance and make cleaning easier.

Graphic Inlays are also available. See pictures inlay gallery for examples.
Onyx Inlay stripes and borders are available as well. Onyx Inlays can be any color and up to 4″ on borders.

Tub Surround

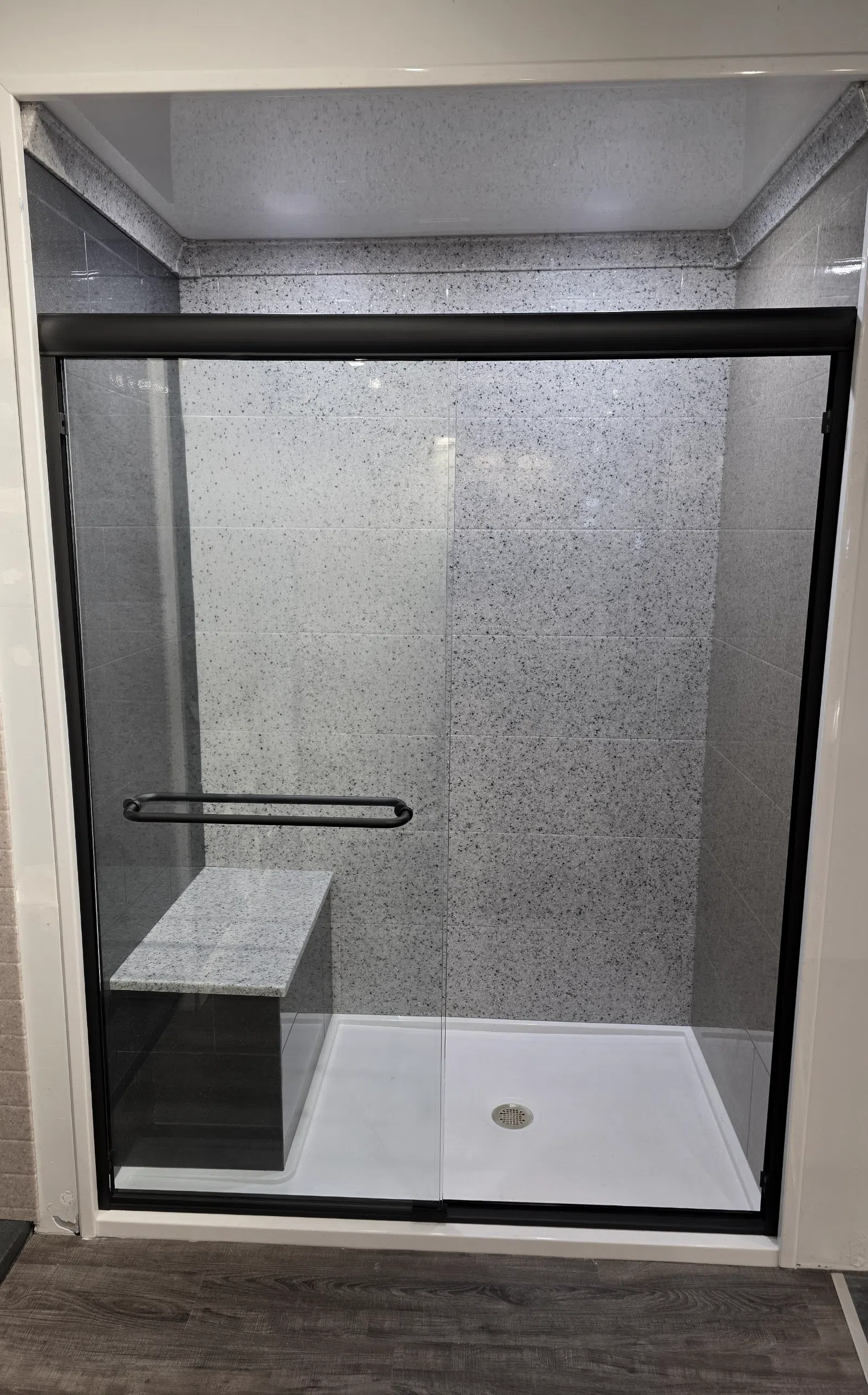

Shower built in seat with walls

Standard Remodelers Kit

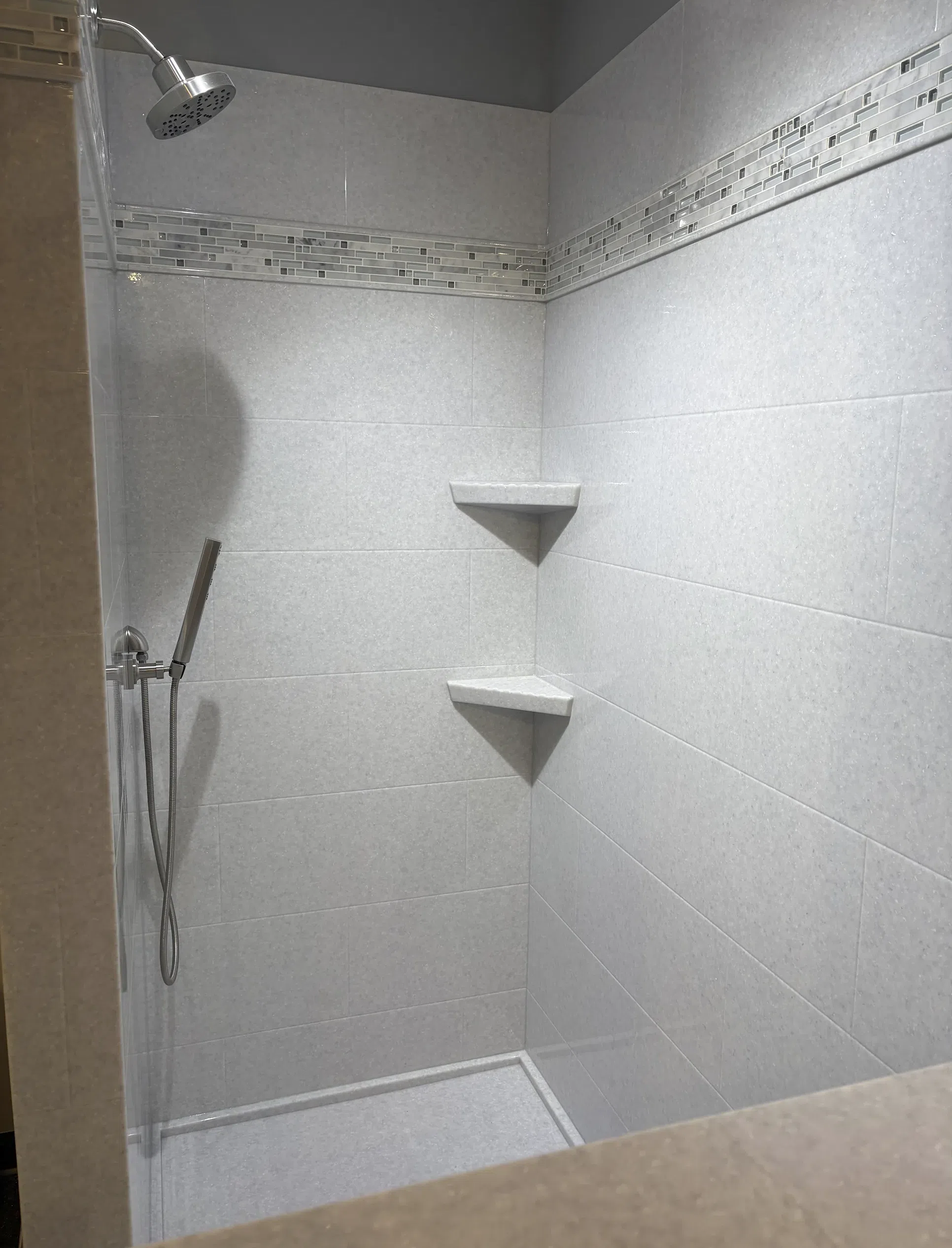

Border Inlays

Stripe Inlays

Graphic Inlay Stripes


Product Certification: ANSI standard, and ASTM E-84 Flame test results
